F722 2-6S AIO 35A(BLHeli_S)

Tootekood: 00313830

Laos

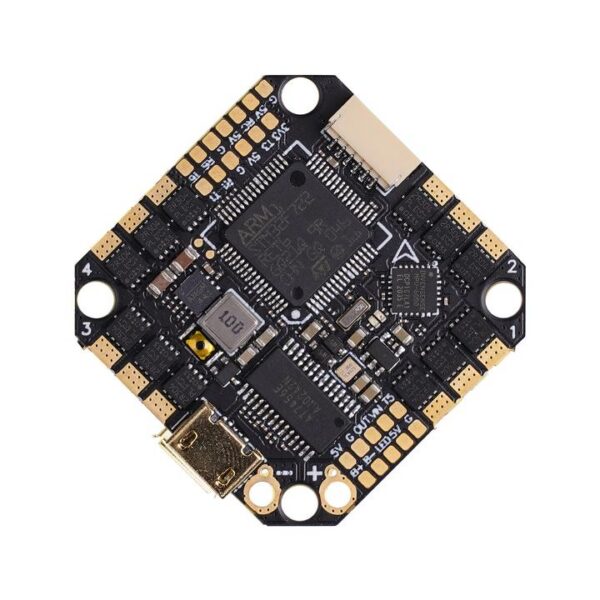

F722 35A AIO FC(BLHeli_S) Flight Controller

Weight: 7.06g
CPU: STM32F722RET6
Six-Axis: MPU6000 (SPI connection)
Mounting hole size: 26mm * 26mm
Firmware version: betaflight_4.2.x_BETAFPVF722
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LED like WS2812 etc
Built-in current sensor

Kuumakse al. €7.25 / 12 kuud

2 laos

€85

€85

Kuumakse alates 8.5 €

Kogus

Ostjal on õigus kaup 14 päeva jooksul tagastada või vahetada.
Laos olevale kaubale kiire tarne.
DJI toodetele saadaval DJI Care lisagarantii.

Tarne

Tarneviisi saad valida ostukorvis.

Pakiautomaati

1-2 tööpäeva
Kuller

1-2 tööpäeva

Kirjeldus
Kirjeldus

Recommended Parts
- BNF: highly recommend for TWIG ET5 and X-Knight 5” Toothpick Quad
- Battery: 550mAh 6S 75C battery, 450mAh 4S battery, 4S 1000mAh Battery
- VTX: M02 25-350mW 5.8G VTX, A02 25-800mW 5.8G VTX
- Motor: 1805 1550KV brushless motor, 2004 Brushless Motors, 1606 Brushless Motor, 1506 Brushless Motor
- Compatible Propellers: Gemfan 5125 3-Blade props and Gemfan 5020 props
- Frame: 4-5 inch Frame, highly recommend for TWIG ET5 5” Toothpick Frame, X-Knight Carbon Fiber 5” V2 Frame Kit and X-knight 5” frame

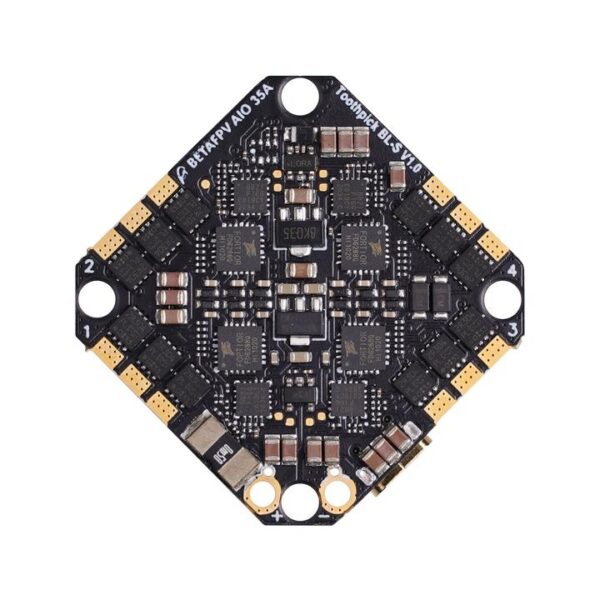

Specification of ESC
- Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

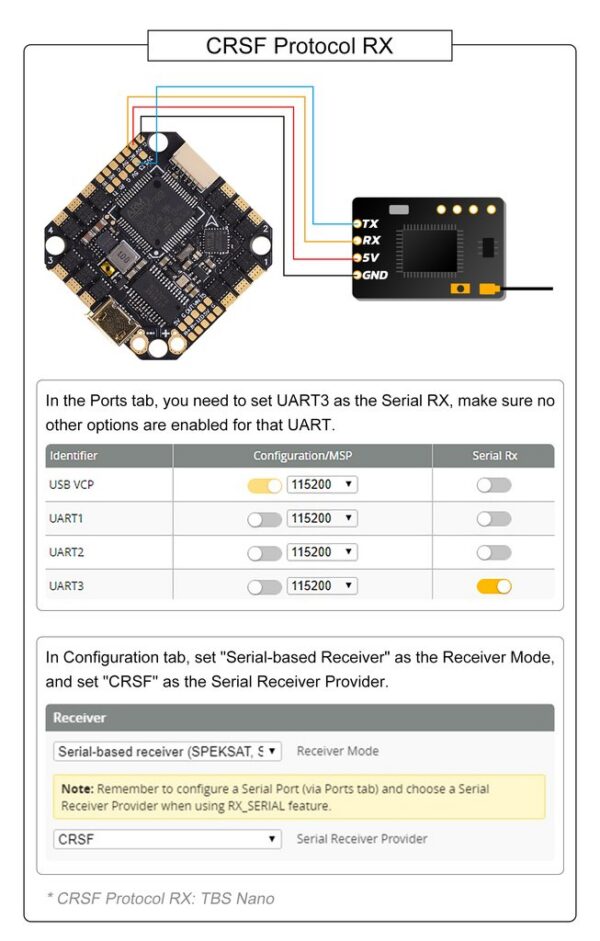

- Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
- Input voltage: 2S-6S Lipo
- Continuous current: 35A
- Peak current: 40A
- ESC firmware: BLHeli_S
- Indicators: 2 indicators: receiver indicator (green)/Flight control power indicator (red)
- Capacitance: CS|5*10*13mm|470μF|35V
- Connecter: 80mm 14AWG silicone cable with XT60
- Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
Päring
Nimi

E-mail

Teema

Teie sõnum

Kirjeldus

Recommended Parts

BNF: highly recommend for TWIG ET5 and X-Knight 5” Toothpick Quad
Battery: 550mAh 6S 75C battery, 450mAh 4S battery, 4S 1000mAh Battery
VTX: M02 25-350mW 5.8G VTX, A02 25-800mW 5.8G VTX
Motor: 1805 1550KV brushless motor, 2004 Brushless Motors, 1606 Brushless Motor, 1506 Brushless Motor
Compatible Propellers: Gemfan 5125 3-Blade props and Gemfan 5020 props
Frame: 4-5 inch Frame, highly recommend for TWIG ET5 5” Toothpick Frame, X-Knight Carbon Fiber 5” V2 Frame Kit and X-knight 5” frame

Specification of ESC

Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
Input voltage: 2S-6S Lipo
Continuous current: 35A
Peak current: 40A
ESC firmware: BLHeli_S
Indicators: 2 indicators: receiver indicator (green)/Flight control power indicator (red)
Capacitance: CS|5*10*13mm|470μF|35V
Connecter: 80mm 14AWG silicone cable with XT60
Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
