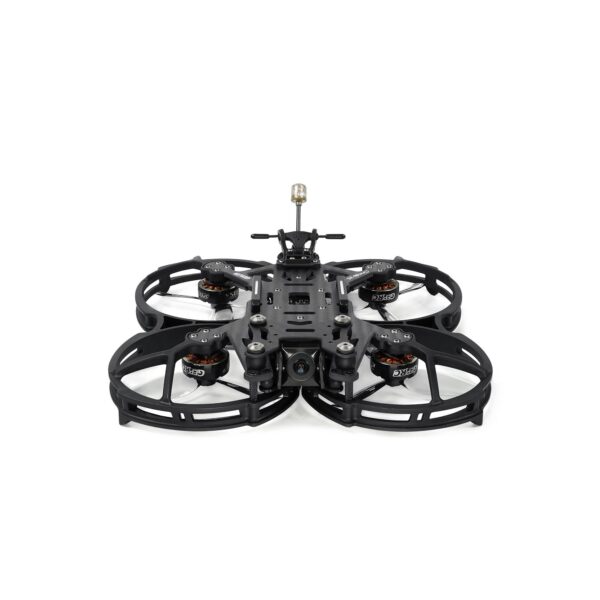

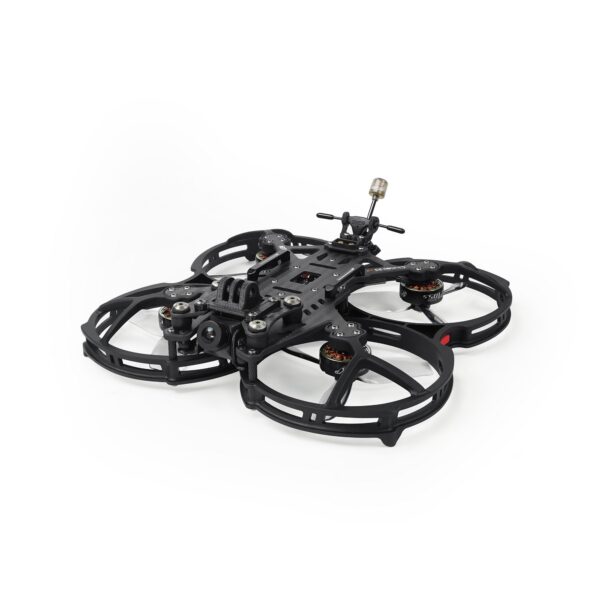

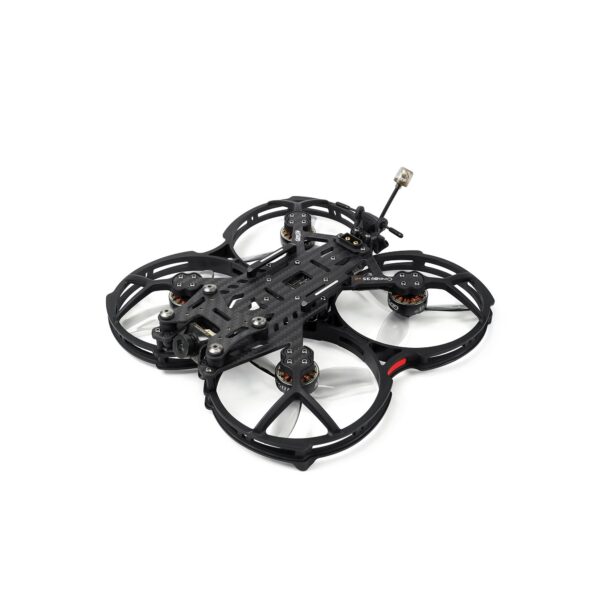

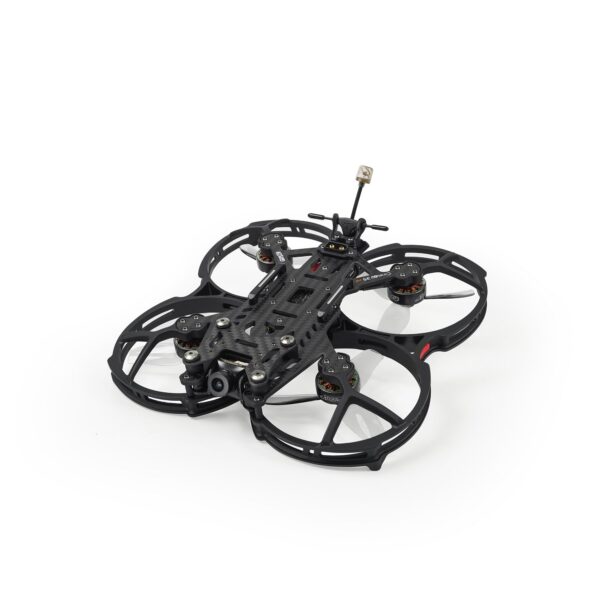

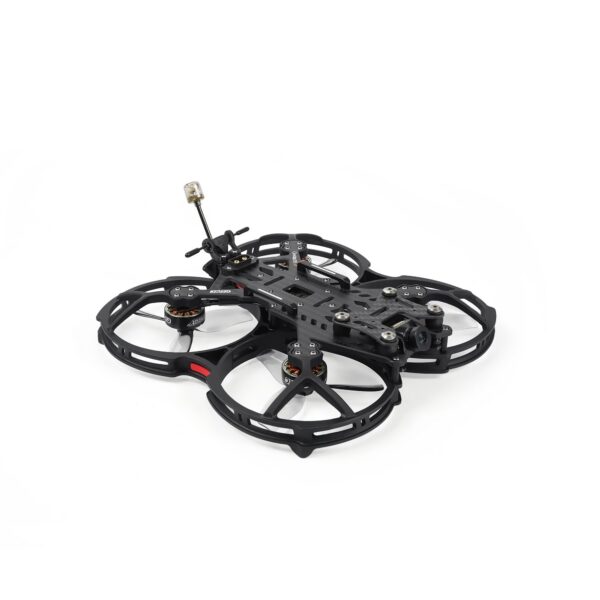

GEPRC Cinelog35 V2 Analog (ELRS 2.4G)

Description

Feature

1. New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
2. Adopts the GEP F722-45A AIO V2 high performance flight controller.
3. Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading
4. For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
5. SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.
6. Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
7. Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
8. Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.

Specifications

• Model: Cinelog35 V2 Analog
• Frame: GEP-CL35 V2

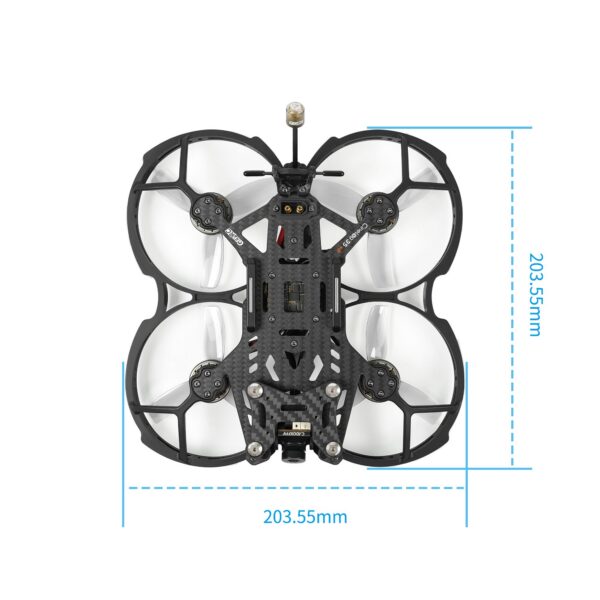

• Wheelbase: 142mm
• Gimbal Plate: 2.0mm
• Top Plate: 3.5mm
• Bottom Plate: 1.5mm
• FC system: GEP-F722-45A AIO V2
• MCU: STM32F722RET6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD w/AT7456E chip
• ESC: 8Bit 45A
• VTX: GEPRC RAD 1W(UFL)
• Camera: Caddx Ratel2
• Antenna: GEPRC Peano 5.8 RHCP UFL
• Motor: SPEEDX2 2105.5-2650KV (6S)
• Propeller: HQProp D-T90MM
• GPS: GEP-M10

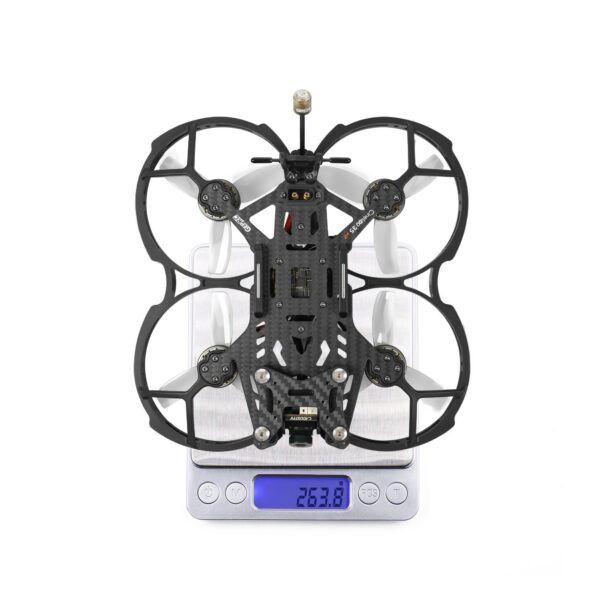

• CineLog35 V2 Analog TBSNanoRX weight: 263.8g
• Receiver: PNP, GEPRC ELRS2.4G, TBS Nano RX
• Recommended battery: LiPo 1050mah-1300mah
• Flight time: 5′00″ -8′ 30″

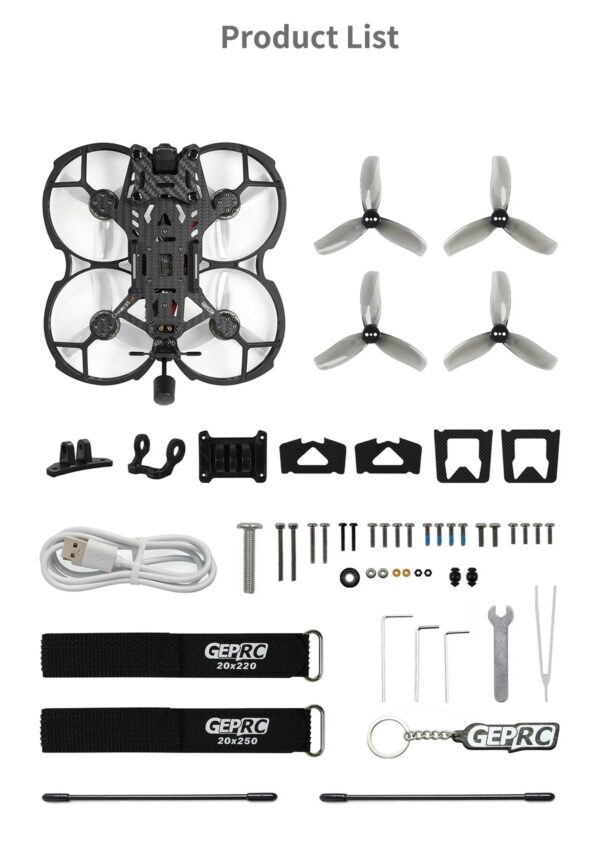

Includes

• 1 x CineLog35 V2 Analog

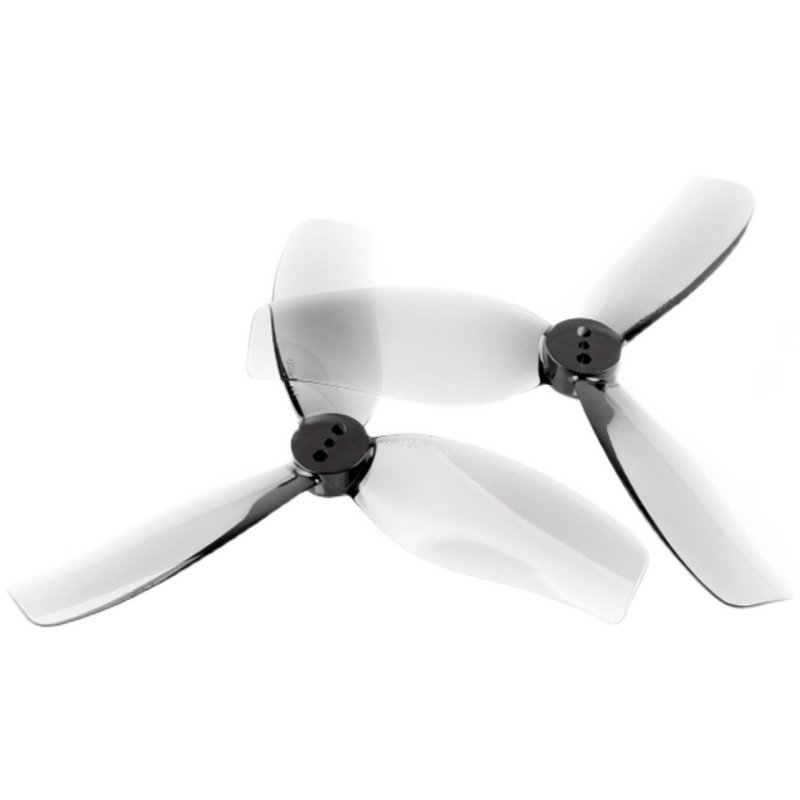

• 2 x HQProp D-T90MM（2 pairs）
• 2x M20*250mm battery strap
• 2 x Battery Silicone Pads
• 1 x Set of screws
• 1 x L-shaped screwdriver (1.5mm)
• 1 x L-shaped screwdriver (2mm)
• 1 x L-shaped screwdriver (3mm)

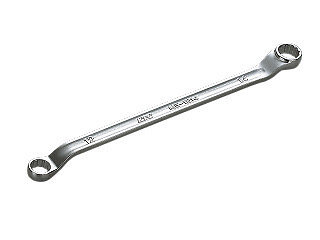

• 1 x M5 wrench

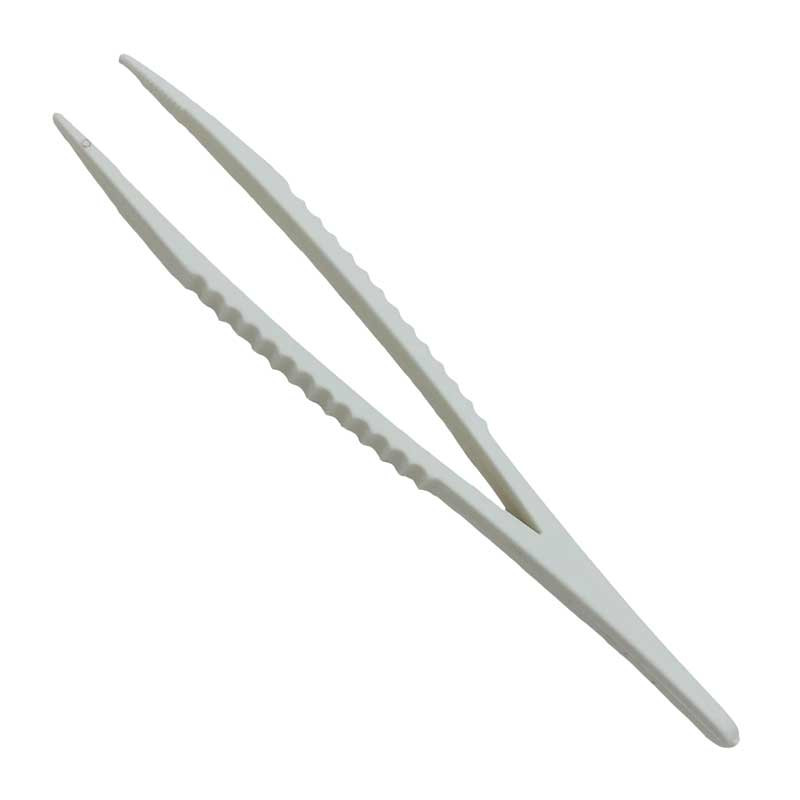

• 1 x plastic tweezers
• 1 x Antenna fixed tube (pair)

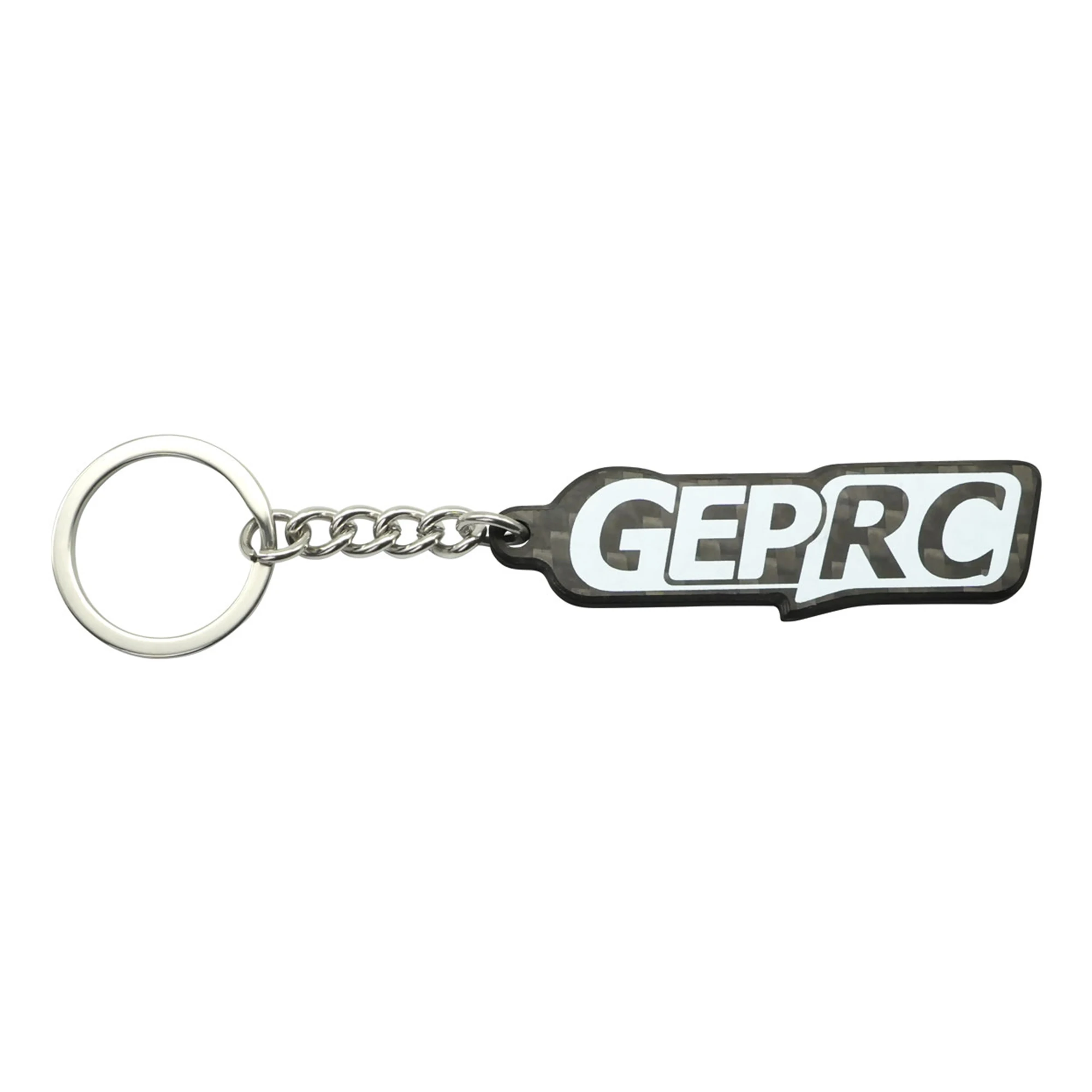

• 1 x Keychain

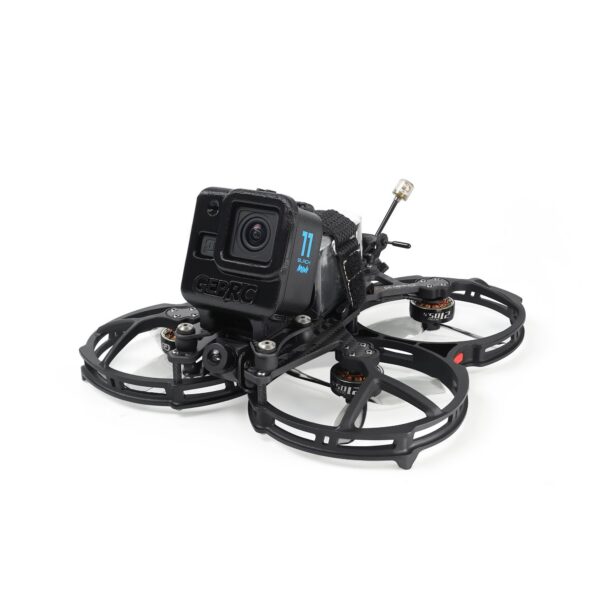

• 1 x GP Camera Mounting Base
• 1 x Naked GP Camera Mounting Base

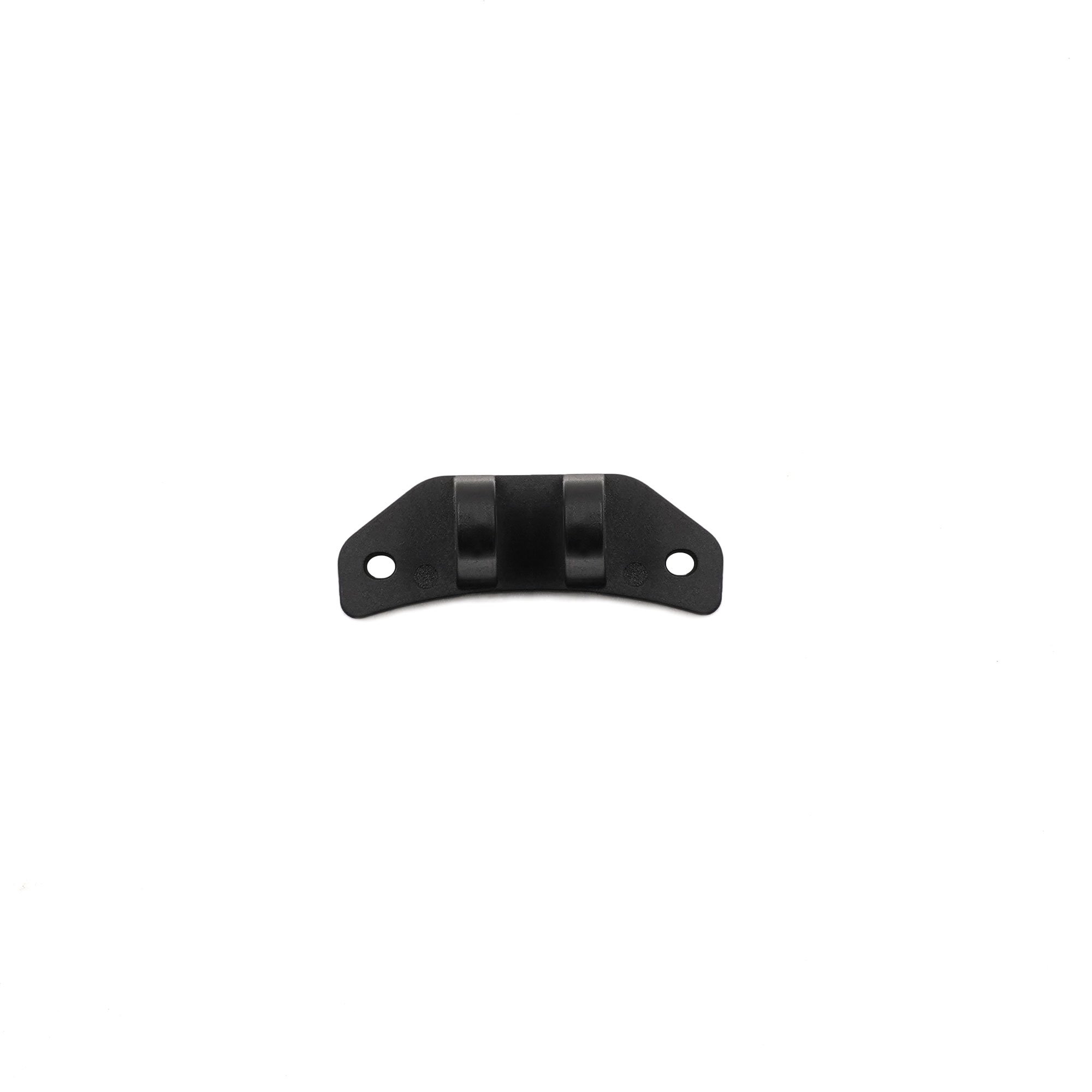

• 1 x Antenna Mounting Base

Screw package includes:

• 2x cup head screws M2*18
• 2x round head screws with pad M2*5.5
• 1x round head screws M2*12
• 2x Rivet nut M2
• 4x round head screws M2*8
• 4x round head screws M2*7
• 4x round head screws M2*6
• 2x round head screws M2.5*6
• 2x hexagonal screw M1.6*8
• 1x Flange nuts M5
• 2x Press Rivet Nuts_Brass color M2*1.9-OD4.9
• 2x Iron nut M2
• 2x Iron nut M2
• 2x Camera gimbal shock absorbing rubber
