Overview:

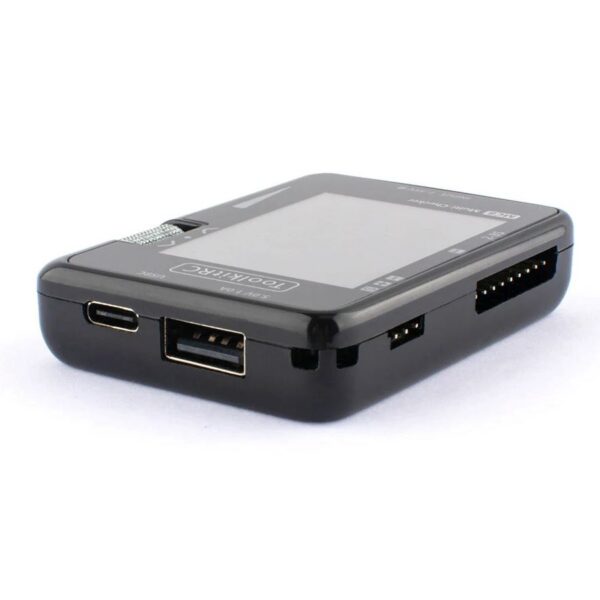

The ToolkitRC MC8 multi function checker includes loads of functionality packed into a compact device. The MC8 is a battery cell checker and balancer, PWM/PPM/SBUS signal checker and PWM output (servo checker) and USB-C/PD fast charger.
Features:
– Battery cell checker / balancer
– PWM/PPM/SBUS receiver signal tester
– PWM output (servo tester)
– USB-A / USB-C PD fast charger (20W)
– Product size: 68*50*15 mm
– Product weight: 50g
– Pack size: 76*60*30 mm
– Pack weight: 100g
– LCD: IPS 2.0inch LCD 320*240 Pixel
Specifications:
Battery Checker
– Main Input port: XT60 7.0-35.0V
– Balance input: 0.5V-5.0V Lixx 2-8S
– Signal port input: <6.0V
– Balance current: MAX 60mA @2-8S
– Balance accuracy: <0.005V @ 4.2V
– USB-A output: 5.0V@1.0A firmware upgrade
– USB-C output: 5.0V-12.0V @MAX 20W
– USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
Measurer
– PWM: 880-2200us @20-400Hz
– PPM: 880-2200us*8CH @20-50Hz
– SBUS: 880-2200us*16CH @20-100Hz
Output
– PWM: 1000-2000us @20-1000Hz
– PPM: 880-2200us*8CH @20-50Hz
– SBUS: 880-2200us*16CH @20-100Hz
