Description
Features:
- Optional colors – Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
- CNC Aluminum AG01 Hall-effect Gimbal
- Available with built-in ExpressLRS Backpack
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ExpressLRS module capable of 1,000Hz refresh rate
- Adjustable ExpressLRS RF output
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Standard JR module compartment
- Internal module cooling fan built-in
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access
- Adjustable and Removable T-shape Antenna
- Industry first fabric handle for improved portability
- Changeable, ergonomic grips
- Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specifications:

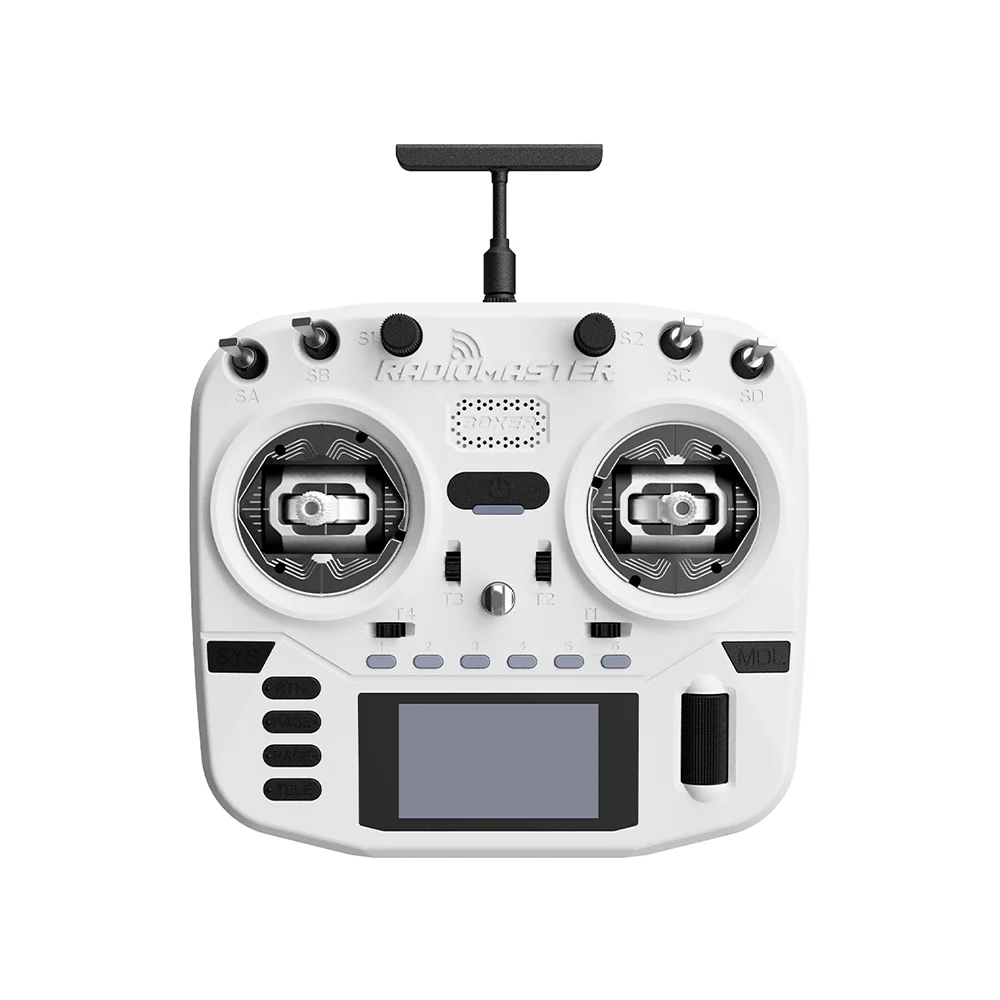

- Item: Boxer Crush Radio
- Color: Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
- Size: 235*178*77mm
- Weight: 617.1g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ExpressLRS 2.4GHz
- Supported protocols: Module dependent
- Cooling fan: Built-in
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: AG01 CNC Hall Gimbal
- External module: JR / FrSKY / Crossfire compatible
- Upgrade Method: USB / SD card & EdgeTX Companion PC software
Preinstalled with EdgeTX and ExpressLRS, the BOXER Crush Radio has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.
