Chasing M2 S (200m)

Name: Chasing M2 S (200m)
SKU: 124030
Price: 3519.90 EUR
Availability: InStock

Tootekood: 124030

Laos

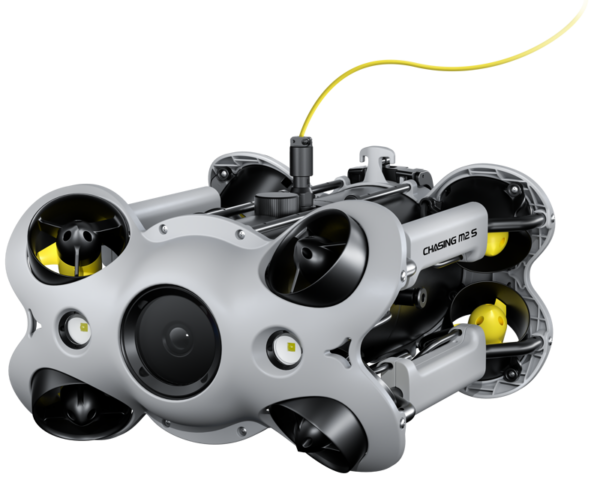

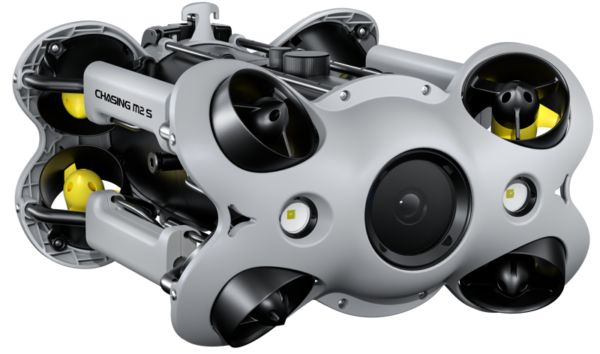

Chasing M2 S is an industrial-grade revolutionary underwater robot, which adopts an open-body design, intelligent flight control system and image algorithm, bringing unprecedented underwater perception and freedom of movement.

Kuumakse al. €102.74 / 60 kuud

1 laos

€3,519.90

Kuumakse alates 351.99 €

Ostjal on õigus kaup 14 päeva jooksul tagastada või vahetada.
Laos olevale kaubale kiire tarne.
DJI toodetele saadaval DJI Care lisagarantii.

Tarne

Tarneviisi saad valida ostukorvis.

Pakiautomaati

1-2 tööpäeva
Kuller

1-2 tööpäeva

Kirjeldus
Kirjeldus

Chasing M2 S has 8 vectored-thrusters which are symmetric and anti-stuck C-Motor 3.0 provide stable power, while the flagship sealed structure guarantees underwater operation performance. The ROV is compact and lightweight, easy to operate, and efficiently completes inspection tasks in various underwater operating scenarios in different industries. The ROV is portable and has a compact body. It has a “Single-person operation” and quick deployment brings an effective operating experience under a variety of scenarios.

Three mechanisms:
- C-Sense control system, flexible and stable
- All-scenario Efficient Operation System
- HD Visual image Transmission System

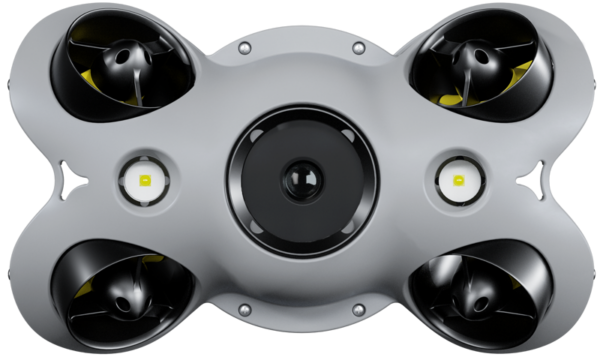

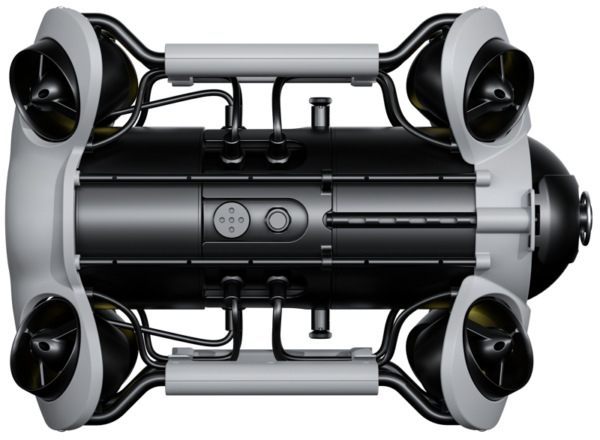

A symmetrical vector layout of the eight thrusters of CHASING. This adopts a design where translation and rotation are independent of each other and supports 360-degree omnidirectional movement The NeptuneX intelligent flight control system is an exclusive CHASING navigation algorithm, that enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.

The third-generation Apex Anti-stuck C-Motor 3.0 is used in the CHASING M2 S adopts a unique anti-stuck solution and magnet protection technology, which ensures power supply but also greatly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stuck performance is stronger, making it more reliable to use.

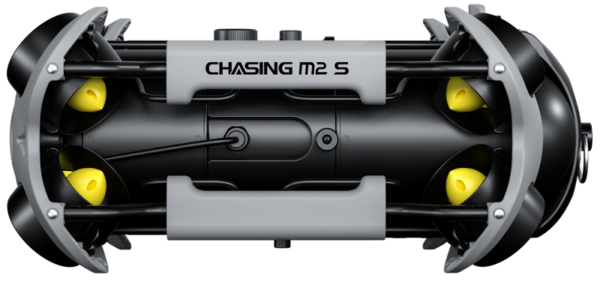

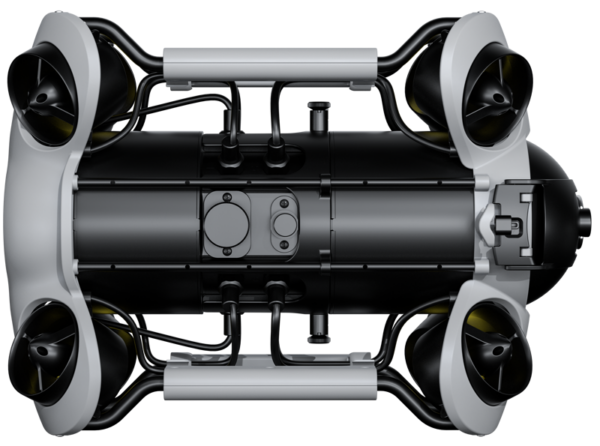

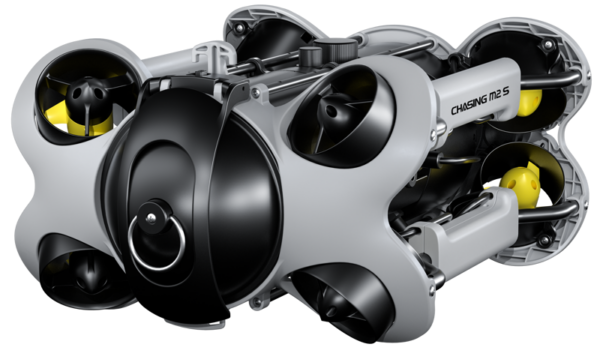

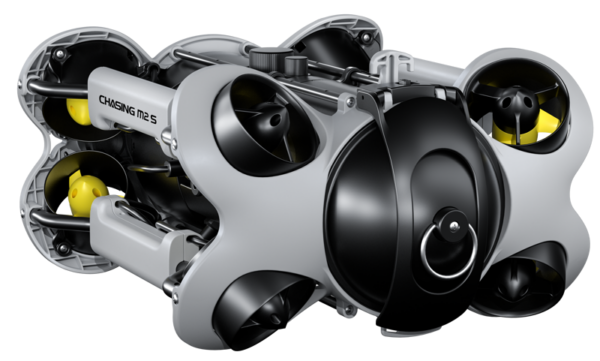

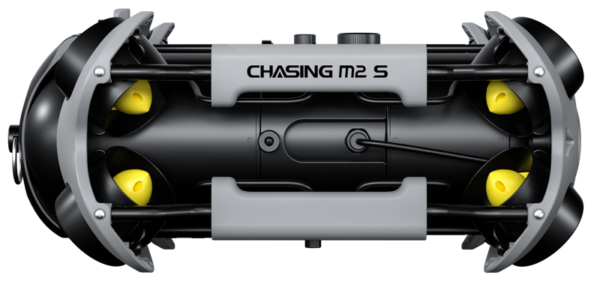

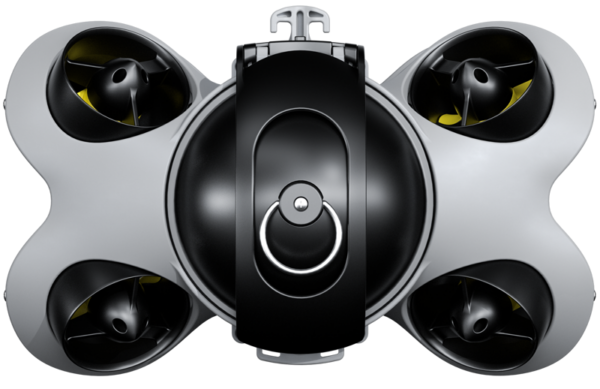

Chasing M2 S bodyweight is 4.5kg with Fully innovate waterproof structure of the main cabin and lighting to further enhance the stability of underwater operations. The streamlined design of the butterfly wing outline at front and rear enhances the recognition and protects the propeller. CHASING M2 S can dive to a maximum depth of 100 meters, an operating radius of 200 meters. 400 meters extendable distance. The included battery of 97.68Wh can power up to 4 hours operation. The battery compartment is ready to use, 200Wh backup battery is also optional to meet the needs of long-time operation.

The color restoration algorithm design is based on underwater light, physical light route, and environmental, as well as the visual identification and tracking system, completely upgrade the image transparency, clarity, color layering, and noise.

ROV Facts:
- Size: 380267165mm
- Weight: 4.5KG
- Max depth: 100m
- Runtime: 4 Hours
- Battery: 97.68Wh
- Operating temperature: -10℃~45℃

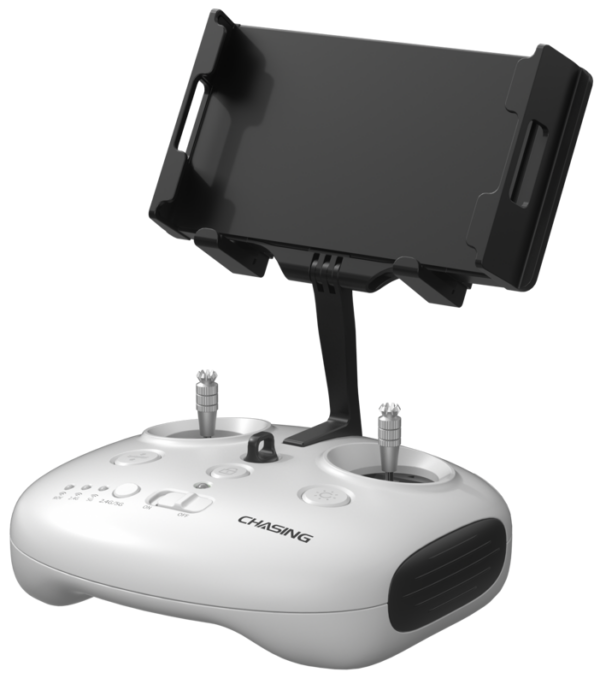

Remote Controller Facts:
- Size: 160155125mm
- Weight: 685g
- Battery: 2500mAh
- Runtime: ≥6H(depending on the environment)
- Wireless: Wi-Fi Supported
- HDMI: Supported
- Handle spring: Maximum support 10 inch
Camera facts:
- CMOS: 1/2.3
- Lens: F2.8
- Focus: 3.2mm
- ISO Range: 100-6400
- FOV: 150°
- Max resolution: 12 Meg Pixel
- Format: JPEG/DNG
- Video UHD: 38402160 (4K) 30fps FHD:19201080 (1080p) 30/60/120fps
- Slow motion: 720p8x (240fps), 1080p4x (120fps)
- Time Lapse: 4K/1080p supported
- Video stream: 60M
- Video Format: MP4
- SD Card: 64G
LED facts:
- Brightness: 2*2000 Lumens
- Color temperature: 5000K~5500K
- CRI: 85
- Dimming: Three gears
Sensor facts:
- IMU: axis gyro/accelerometer/ compass
- Depth sensor:＜±0.25m
- Temperature sensor:＜±2℃
Charger facts:
- Power: 2.9A/25.2V
- ROV charging time: 2.5H
- RC Charging time: 2H

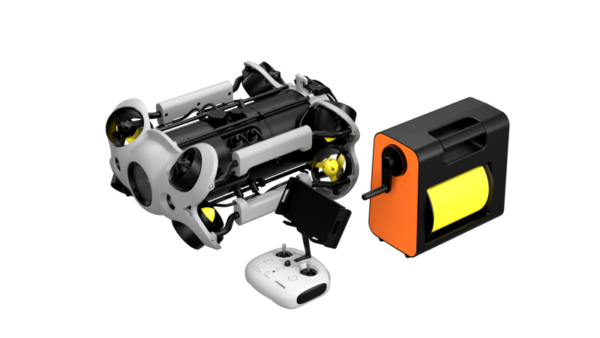

What’s in the box:
- ROV
- Remote control
- 200 meter tether
- Manual reel
- 2 back up motors
