Description
Specifications:

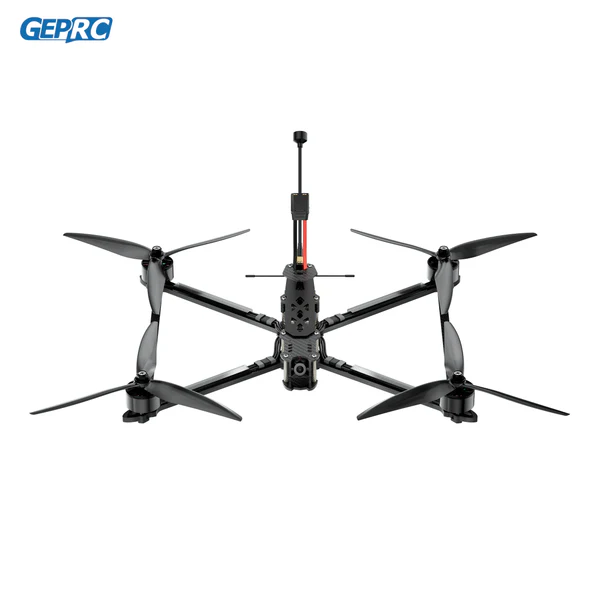

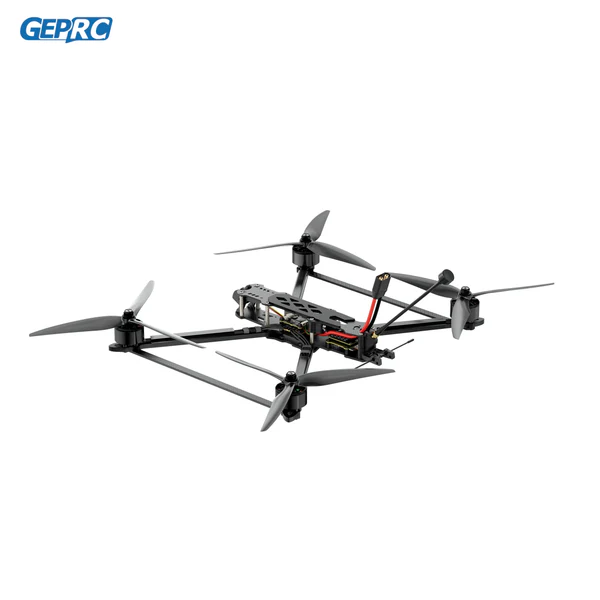

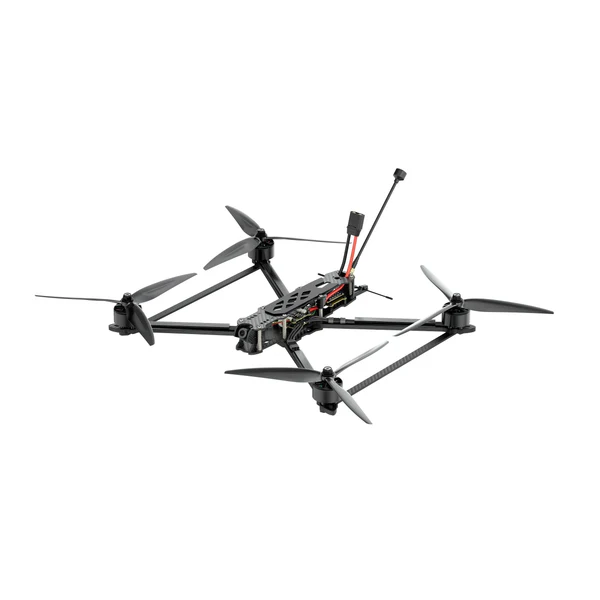

- Frame: GEP-MARK4-10
- Wheelbase: 429mm
- Top plate thickness：2mm
- Bottom plate thickness：3mm
- Side plate thickness：2.5mm
- Arm thickness：7mm
- Mid plate thickness：3mm
- Stiffener bar thickness：3mm
- FC: GEPRC F405 V2

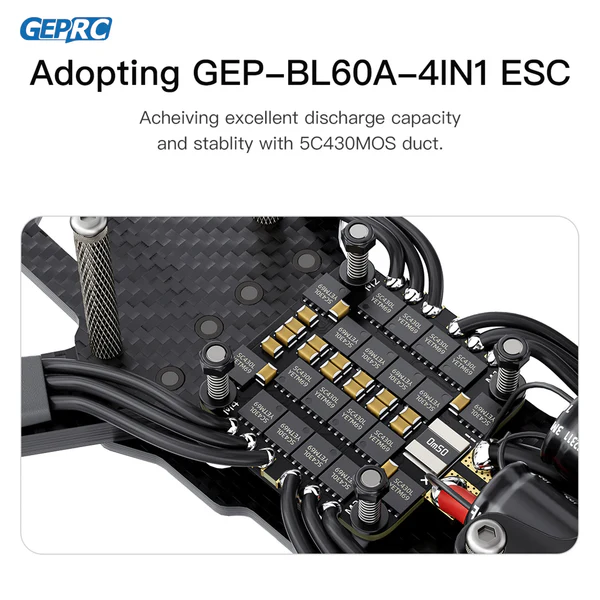

- ESC： GEP-BL60A-4IN1
- MCU： STM32F405RGT6
- Gyroscope： ICM-42688-P
- VTX:RAD VTX 5.8G 2.5W
- Camera: Caddx H1
- Antenna: 5.8G RHCP SMA Antenna
- Motor: EM3115 900KV
- Propellers: Gemfam 1050-3
- Maximum payload: 3kg
- Weight: 968±10g
Includes:
- 1x MARK4 LR10 FPV Drone
- 2x GEMFAN 1050-3(1R/1L)
- 1x Camera anti-slip pad
- 1x Reserved screw pack
- 1x L-shaped screwdriver(1.5mm)
- 1x L-shaped screwdriver(2.0mm)
- 1x M8 wrench
- 2x Anti-slip rubber strips zinc alloy buckle-20*250mm
- 2x Anti-slip rubber strips zinc alloy buckle-20*300mm
- 1x GEPRC frame kits-shock absorber pad( 4 in one set) V2 version
- 1x VTX Antenna
