Description
Specifications:

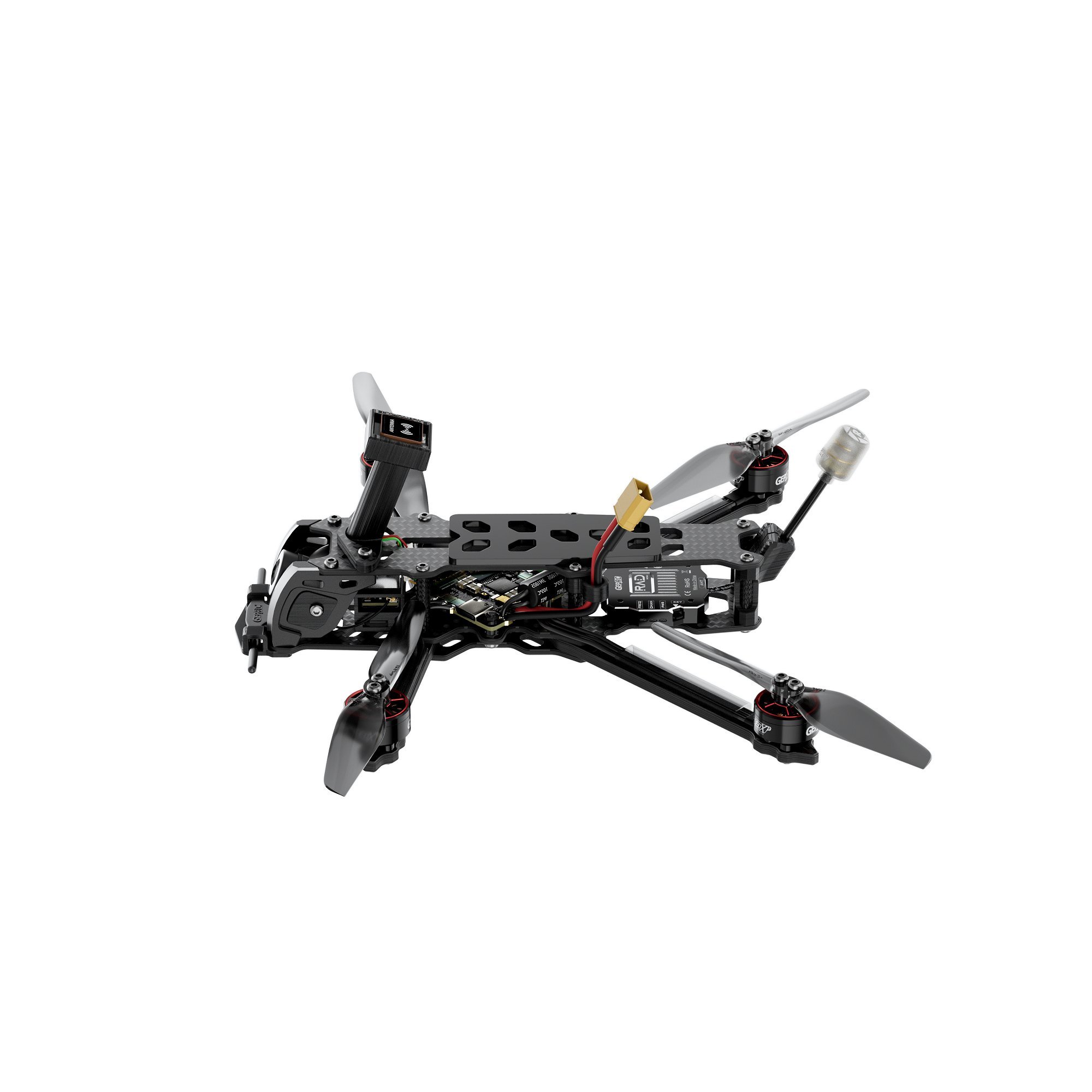

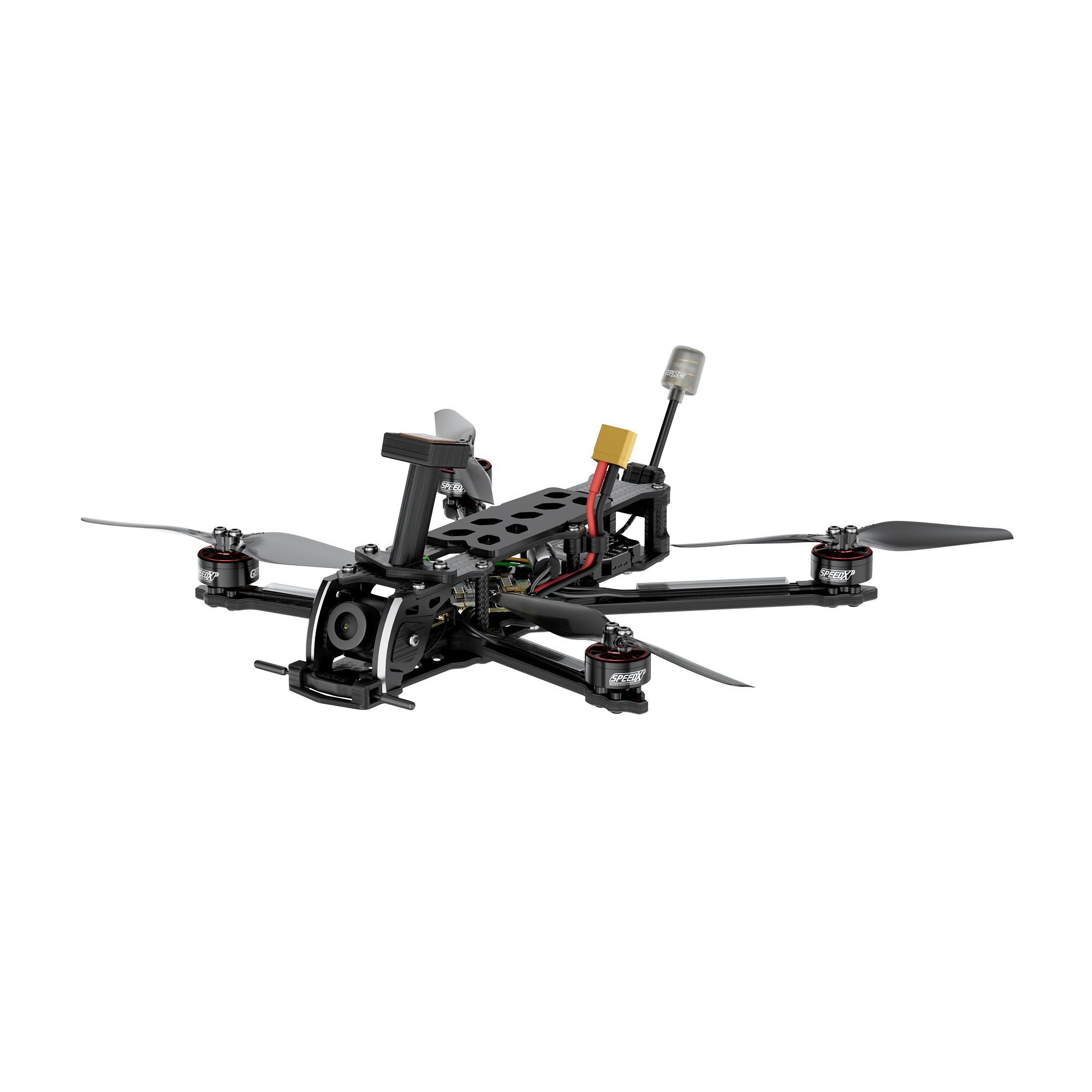

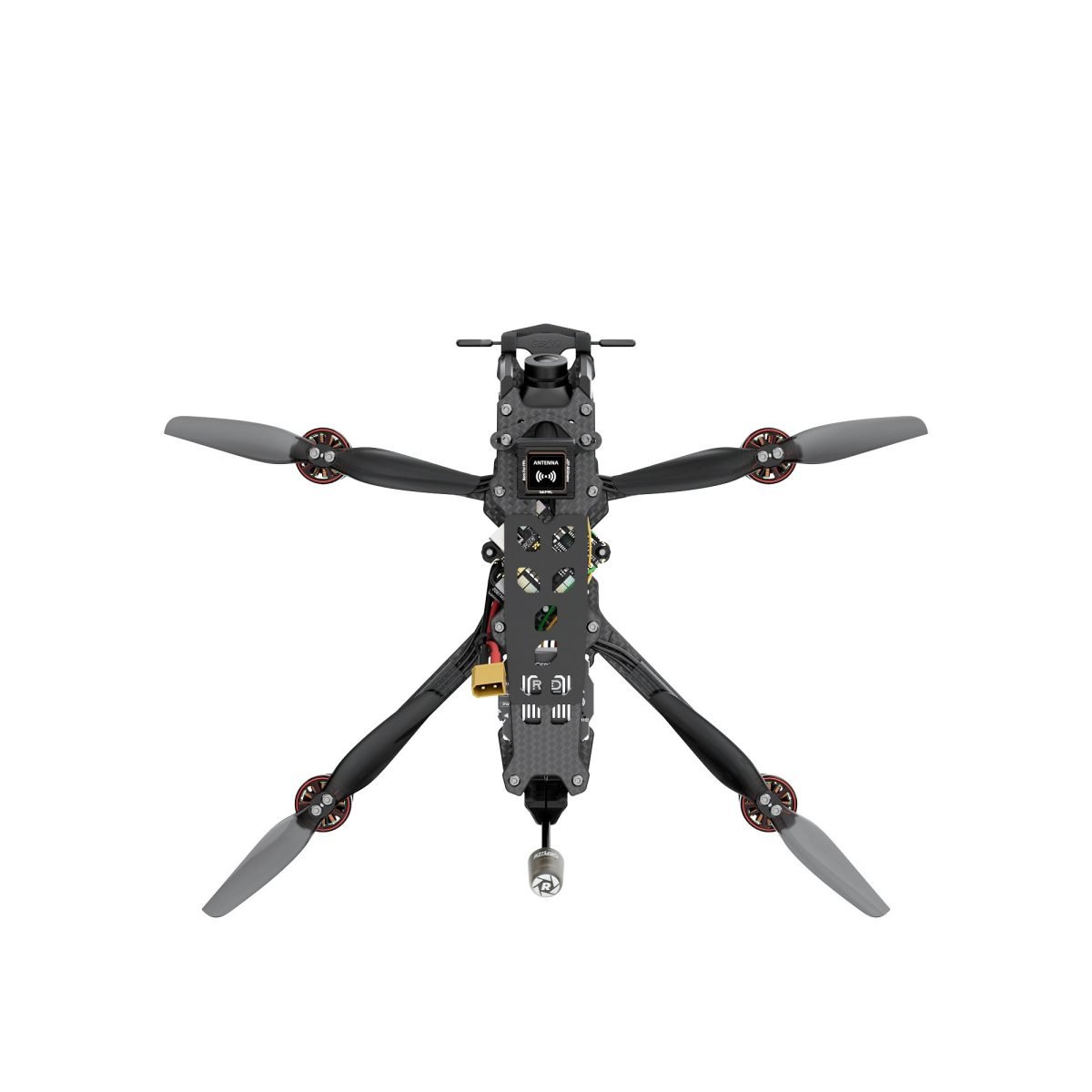

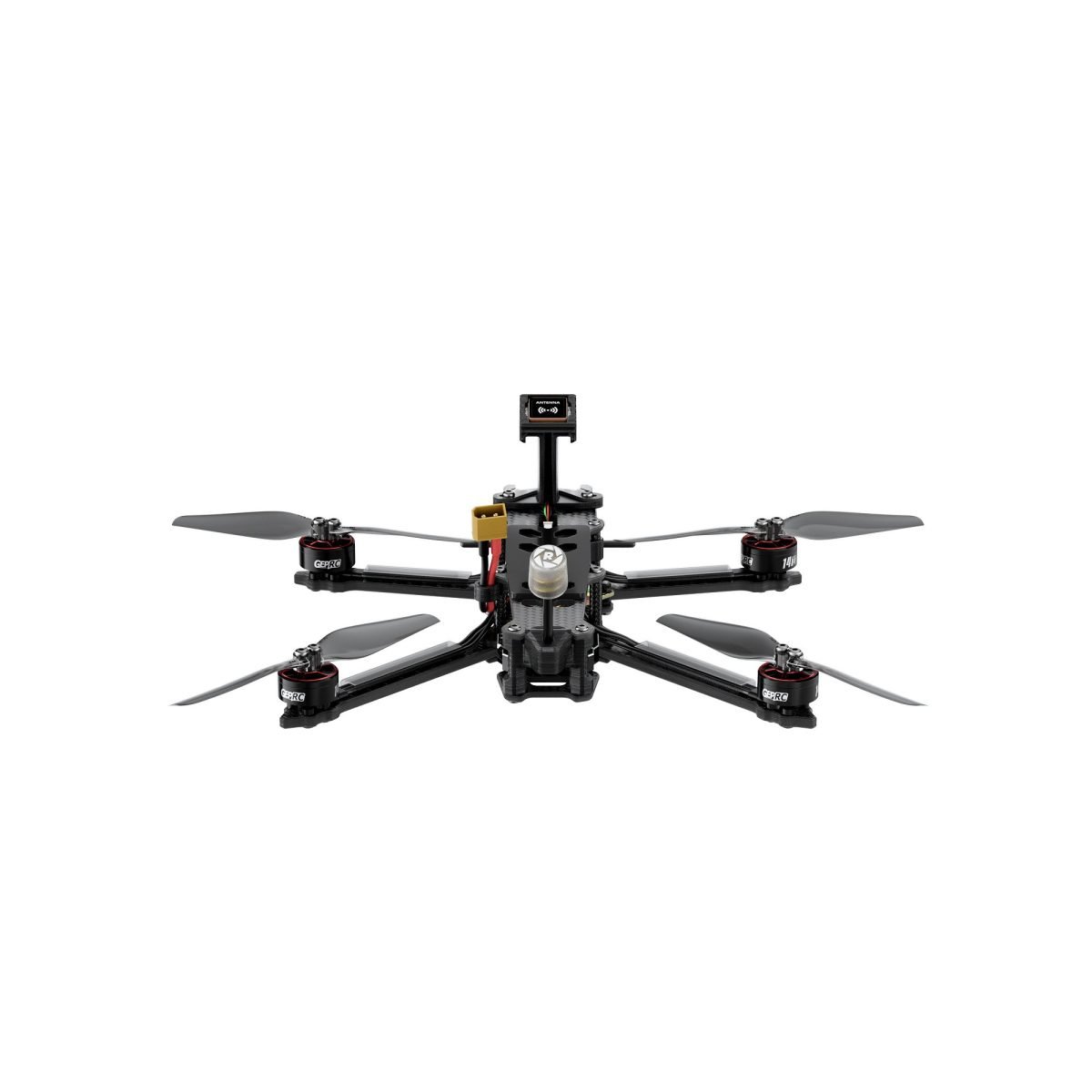

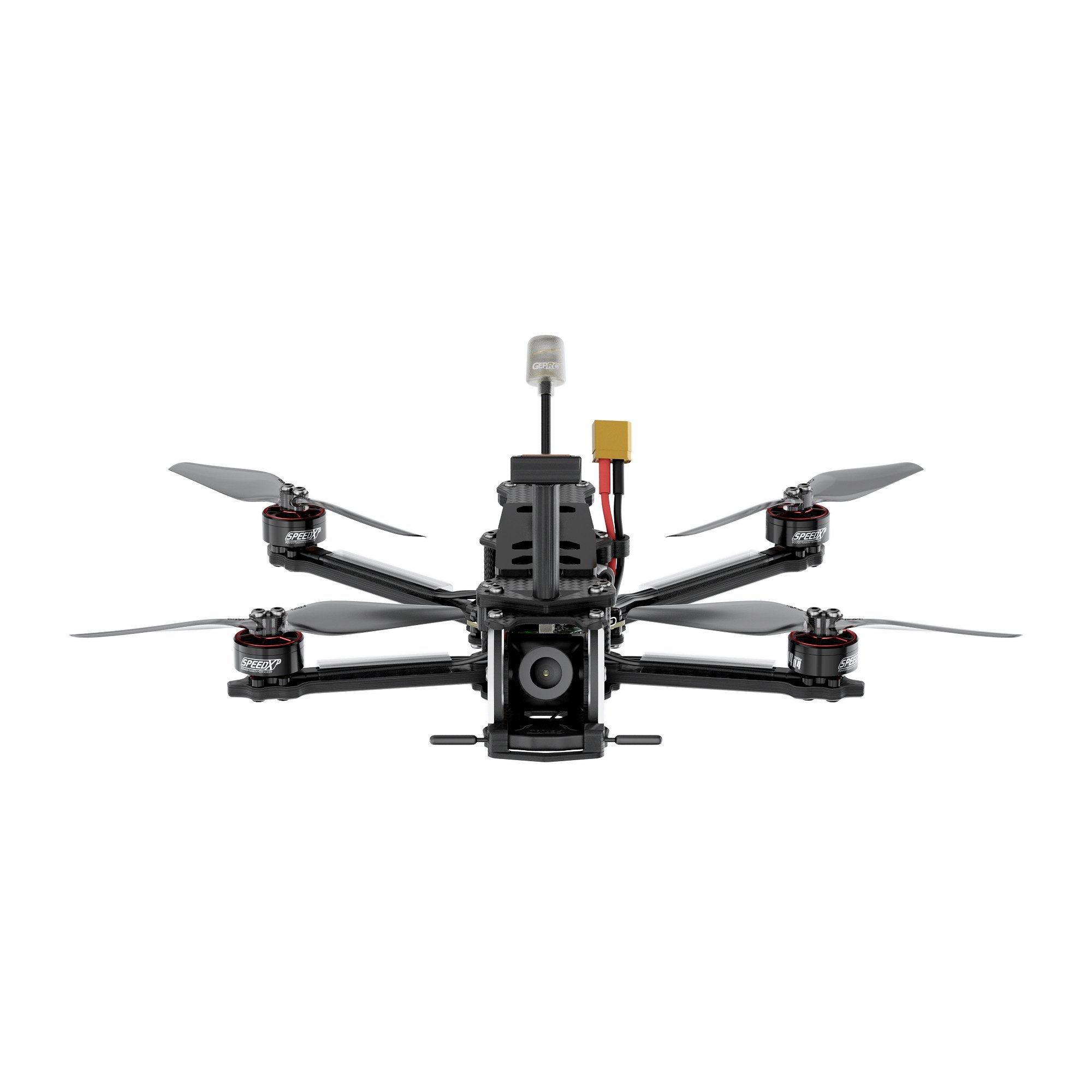

- Frame: Tern-LR40 frame
- Top plate: 1.5mm
- Middle plate: 2.0mm
- Bottom plate: 1.5mm
- Arm thickness: 3.5mm
- FC: Taker G4 45A AIO
- MCU: STM32G473CEU6
- Gyro: ICM 42688-P
- OSD: Betaflight OSD w/AT7456E
- ESC: 45A 8Bit ESC
- VTX: RAD mini 1W
- Camera: Caddx Ratel2
- Antenna: GEPRC Peano 5.8G RHCP UFL
- Connector：XT30
- Motors: GEP-SPEEDX2 1404 3000KV
- Propellers: HQProp T4X2.5Grey (2CW+2CCW)
- Tern -LR40 Analog ELRS24 version weight: 159g±5g
- Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
- Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
- Flight time: 10-25min
In the box:
- 1 x Tern-LR40
- 2x HQProp T4X2.5Grey (2CW+2CCW)
- 2x battery anti-slip mat
- 1x screw pack
- 4x Battery strap M15*170mm
- 1x L-shaped screwdriver 1.5mm
- 1x GoPro camera mount holder
- 1x T-type Antenna mount
- 1x RC Printed
