BetaFPV C03 Camera

SKU: 01060007_C03
In stock

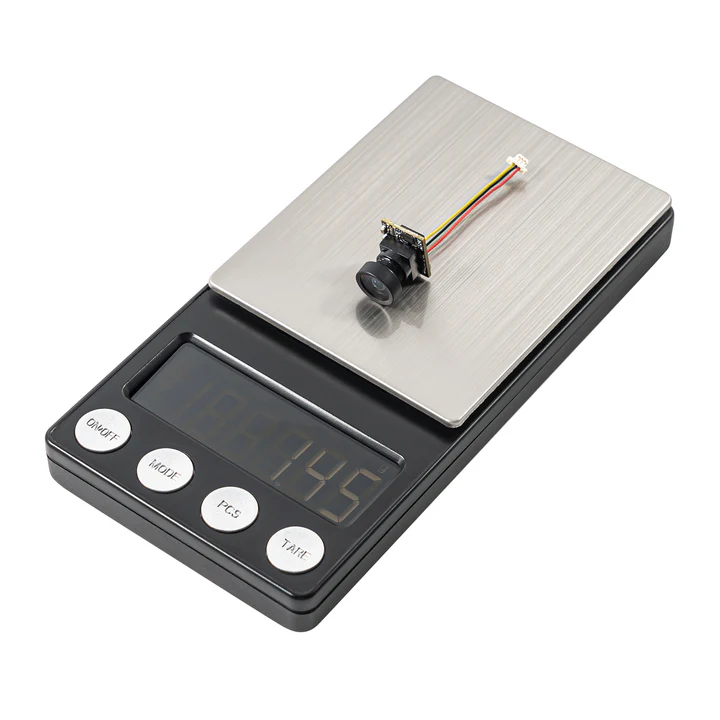

The BetaFPV C03 is a lightweight (1.45g) 1200 TVL resolution camera designed to provide excellent performance for micro-FPV quadcopters.

The camera features a 2.1mm lens that provides a 160° field of view, a 4:3 aspect ratio, and a 1/3” CMOS sensor for clear and bright images.

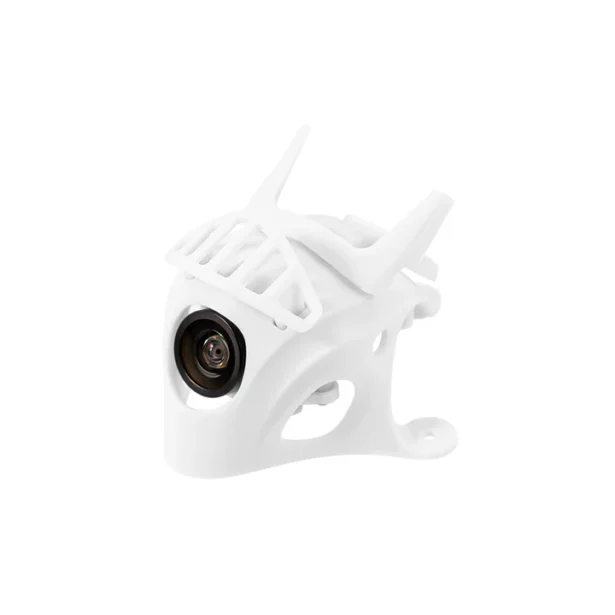

It is equipped with the BETAFPV micro canopy, which fits the C03 camera perfectly.

5 in stock

24

24

Monthly payment from 2.4 €

Quantity

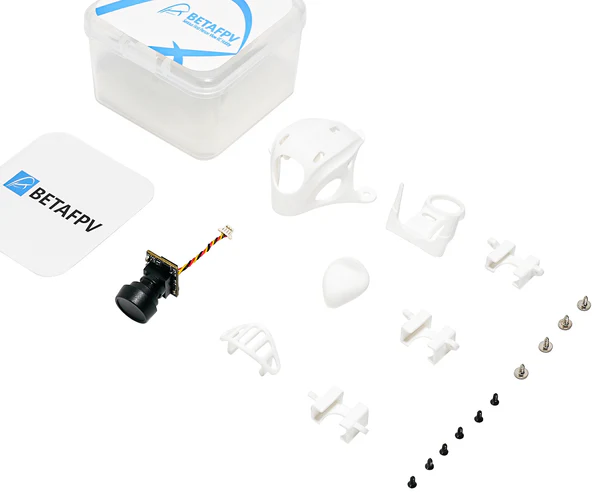

  • In the box:

  • 1 * C03 FPV Micro Camera

  • 1 * BETAFPV Micro Canopy

  • 1 * 20° Lens Camera Mount for C02

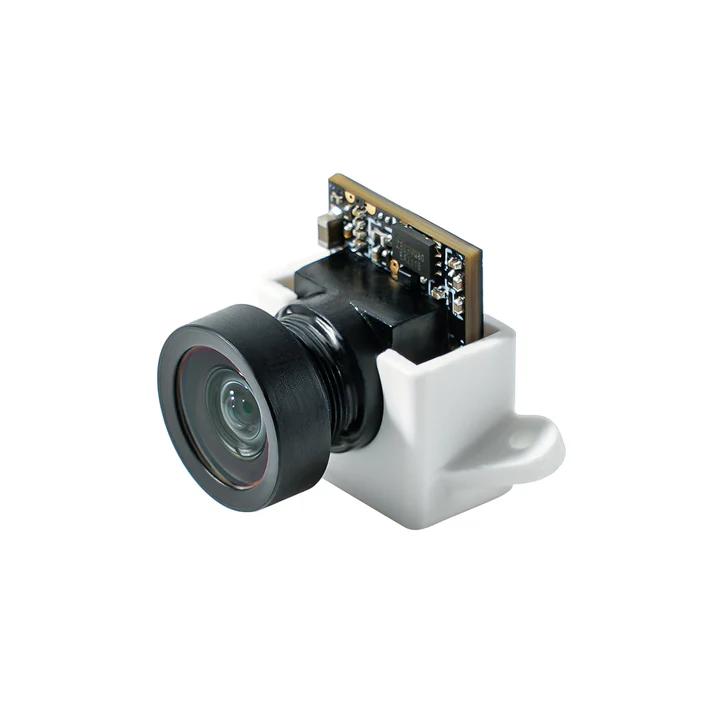

  • 1 * 20° Lens Camera Mount for C03

  • 1 * 30° Lens Camera Mount for C03

  • 3 * Decorative Parts

  • 4 * M1.4*5 Screws (Silver)

  • 6 * M1.4*4 Screws (Black)

Transport

You can choose the delivery method in the shopping cart.

  • Parcel machine

    1-3 working days

  • Courier

    1-3 working days

Description

  • Image sensor: 1/3″ CMOS sensor
  • Horizontal: 1200 TVL with global WDR
  • Signal system: NTSC (4:3)
  • Lens: 2.1 mm (M7) FOV 160°
  • S/N ratio: >50 dB
  • Electronic shutter speed: Automatic
  • Automatic gain control (AGC): Automatic
  • Minimum illumination: 0.01 lux @ 1.2 F
  • D-WDR: Automatic
  • Day/night: Color
  • Power supply: DC 3-5.5 V
  • Current: 100 mA @ 5 V / 120 mA @ 3.3 V
  • Housing material: ABS
  • Dimensions: 11 * 15 * 14 mm
  • Net weight: 1.45 g

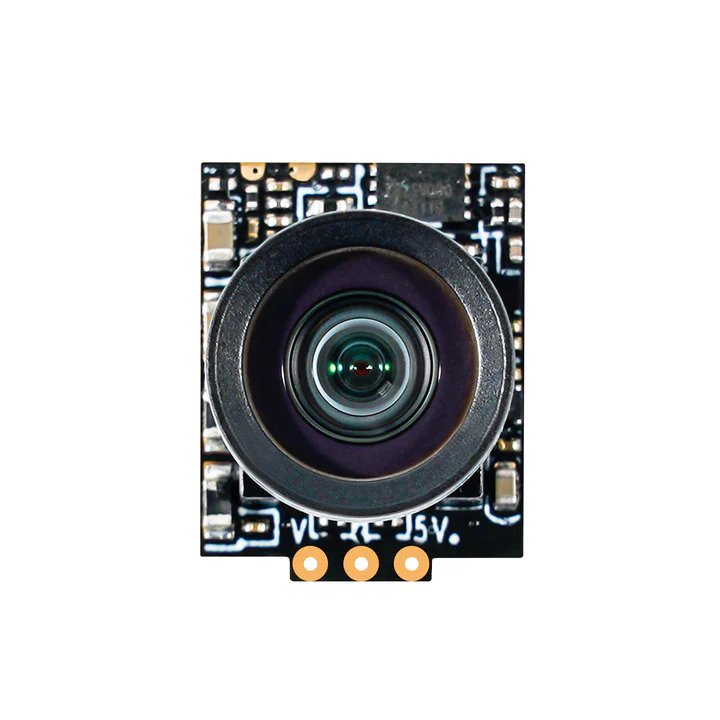

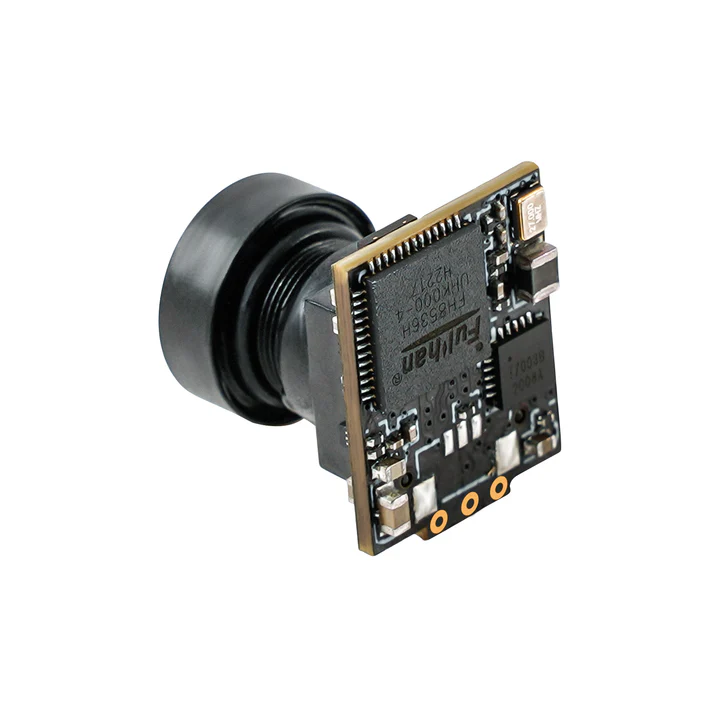

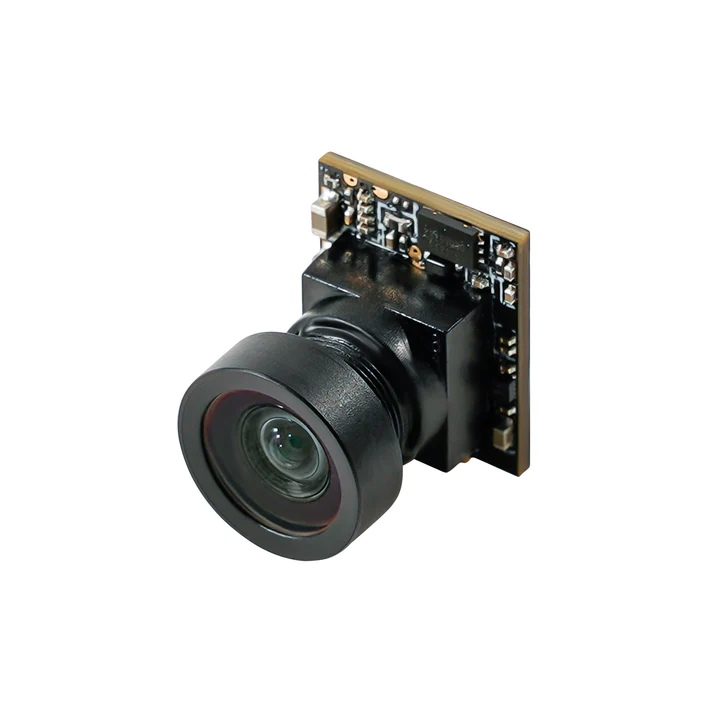

C03 Micro Camera

C03 FPV Micro Camera V2 diagram
