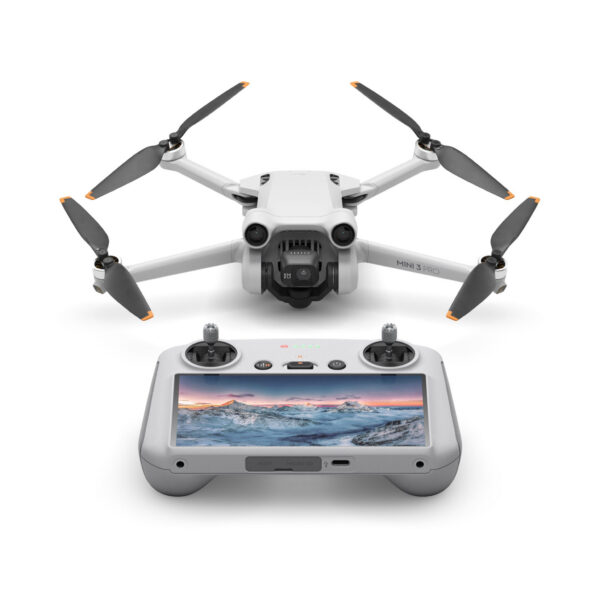

DJI Mini 3 Pro (DJI RC)

Õhusõiduk

• Õhkutõusu kaal

• <249 g ^[1]

• Mõõdud (P×L×K)

• Kokkuklapitult: 145×90×62 mm
  Lahtiklapitult: 171×245×62 mm
  Lahtiklapitult (koos propelleritega): 251×362×70 mm

• Diagonaali pikkus

• 247 mm

• Max tõusukiirus

• 5 m/s (S režiim)
  3 m/s (N režiim)
  2 m/s (C režiim)

• Max languskiirus

• 5 m/s (S režiim)
  3 m/s (N režiim)
  1.5 m/s (C režiim)

• Max kiirus
  (merekõrgusel, ilma tuuleta) ^[2]

• 16 m/s (S režiim)
  10 m/s (N režiim)
  6 m/s (C režiim)

• Max teeninduslagi merepinnast kõrgemal

• Koos intelligentse lennuakuga: 4000m
  Koos intelligentse Plus lennuakuga ^[7]: 3000 m ^[3]

• Max lennuaeg

• 34 minutit (koos intelligentgse lennuakuga ja lennutates tuulevaiksetes tingimustes kiirusega 21.6 km/h)
  47 minutit (koos intelligentse Plus ^[7]  lennuakuga ja lennutates tuulevaiksetes tingimustes kiirusega 43.2 km/h. Ainult saadaval valitud riikides.)

• Max hõljumisaeg

• 30 minutit (koos intelligentse lennuakuga, ilma tuuleta)
  40 minutit (koos intelligentse Plus lennuakuga ^[7], ilma tuuleta)

• Max lennukaugus

• 18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions)
  25 km (with Intelligent Flight Battery Plus ^[7] and measured while flying at 43.2 kph in windless conditions)

• Max tuulekindlus

• 10.7 m/s (Level 5)

• Max Tilt Angle

• Eesmine: 40°, Tagumine: 35° (S režiim)
  25° (N režim)
  25° (C režiim)

• Maksimaalne nurkkiirus (vaikimisi)*

• 130°/s (S režiim)
  * Can be adjusted between 20°/s and 250°/s in the app75°/s (N režiim)
  * Can be adjusted between 20°/s and 120°/s in the app30°/s (C režiim)
  * Can be adjusted between 20°/s and 60°/s in the app

• Töötemperatuur

• -10° kuni 40° C

• Global Navigation Satellite System (GNSS)

• GPS + Galileo + BeiDou

• Toimimissagedus

• 2.400-2.4835 GHz
  5.725-5.850 GHz ^[4]

• Saatja võimsus (EIRP)

• 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

• Hõljumise täpsusvahemik

• Vertikaalne:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)Horizontal:
  ±0.3 m (with vision positioning)
  ±0.5 m (with high-precision positioning system)

Tuvastussüsteem

• Eesmine

• Precision Measurement Range: 0.39-25 m
  Effective Sensing Speed: Flight speed <10 m/s
  FOV: Horizontal 106°, Vertical 90°

• Tagumine

• Precision Measurement Range: 0.36-23.4 m
  Effective Sensing Speed: Flight speed <10 m/s
  FOV: Horizontal 58°, Vertical 73°

• Alumine

• Precision Measurement Range: 0.15-9 m
  Precise Hovering Range: 0.5-12 m
  Vision Sensor Hovering Range: 0.5-30 m
  Effective Sensing Speed: Flight speed <3 m/s
  FOV: Forward/Backward 104.8°, Left/Right 87.6°

• Alumine lisavalgusti

• N/A

• Tegevuskeskkond

• Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement)
  Adequate lighting (lux >15, e.g. , normal exposure environment with indoor fluorescent lamp)

Gimbal

• Mehaaniline vahemik

• Tilt: -135° kuni 80°
  Roll: -135° kuni 45°
  Pan: -30° kuni 30°

• Kontrollitav vahemik

• Tilt: -90° kuni 60°
  Roll: -90° kuni 0°

• Stabiliseerimine

• 3-axis mechanical gimbal (tilt, roll, and pan)

• Maksimaalne juhtimiskiirus (tilt)

• 100°/s

• Angular Vibration Range

• ±0.01°

Kaamera

• Sensor

• 1/1.3-inch CMOS
  Effective Pixels: 48 MP

• Lääts

• FOV: 82.1°
  Format Equivalent: 24 mm
  Aperture: f/1.7
  Focus Range: 1 m to ∞

• ISO vahemik

• Video: 100-6400 (Auto), 100-6400 (Manual)
  Photo: 100-6400 (Auto), 100-6400 (Manual)

• Katiku kiirus

• Electronic Shutter: 2-1/8000 s

• Max pildisuurus

• 4:3: 8064×6048 (48 MP), 4032×3024 (12 MP)
  16:9: 4032×2268 (12 MP)

• Fotograafia režiimid

• Single ShotInterval:
  JPEG: 2/3/5/7/10/15/20/30/60 s
  JPEG + RAW: 2/3/5/7/10/15/20/30/60 sAuto Exposure Bracketing (AEB): 3/5 bracketed frames at 2/3 EV BiasPanorama: Sphere, 180°, Wide-angle, and Vertical

• Foto formaat

• JPEG/DNG (RAW)

• Video resolutsioon

• 4K: 3840×2160@24/25/30/48/50/60fps
  2.7K: 2720×1530@24/25/30/48/50/60fps
  FHD: 1920×1080@24/25/30/48/50/60fps
  Slow Motion: 1920×1080@120fps

• HDR režiim

• Photo: HDR supported in Single Shot mode
  Video: HDR supported when shooting at 24/25/30fps

• Video formaat

• MP4/MOV (H.264/H.265)

• Max Video Bitrate

• 150 Mbps

• Suumivahemik

• 4K: 2x
  2.7K: 3x
  FHD: 4x

• QuickShot režiimid

• Dronie, Helix, Rocket, Circle, Boomerang, and Asteroid

• Värviprofiilid

• Normal
  D-Cinelike

• Toetatud failisüsteemid

• FAT32 (≤32 GB)
  exFAT (>32 GB)

Video edastamine

• Video edastamise süsteem

• DJI O3

• Otsevaate kvaliteet

• 1080p/30fps

• Töösagedus

• 2.400-2.4835 GHz
  5.725-5.850 GHz ^[4]

• Saatja võimsus (EIRP)

• 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

• Communication Bandwidth

• 1.4MHz/3MHz/10MHz/20MHz/40MHz

• Latency (depending on environmental conditions and mobile device)

• Aircraft + Remote Controller: Approx. 120 ms

• Max Video Bitrate

• Aircraft + Remote Controller: 18 Mbps

• Max allalaadimise Bitrate ^[5]

• DJI O3:
  RC-N1 Remote Controller and DJI RC: 5.5 MB/sWi-Fi 5: Max 30 MB/s

• Signaali edastusulatus
  (FCC) ^[6]

• Strong Interference (urban landscape): Approx. 1.5-3 km
  Medium Interference (suburban landscape): Approx. 3-7 km
  Low Interference (suburb/seaside): Approx. 7-12 km

• Antennid

• 4 antennas, 1T2R

• Heli edastus

• N/A

Wi-Fi

• Protokoll

• 802.11 a/b/g/n/ac

• Saatja võimsus (EIRP)

• 2.400-2.4835 GHz: ＜19 dBm (FCC/CE/SRRC/MIC)
  5.725-5.850 GHz: ＜20 dBm (FCC/SRRC), ＜14 dBm (CE)

Bluetooth

• Protokoll

• Bluetooth 5.2

• Saatja võimsus (EIRP)

• 2.400-2.4835 GHz: ＜8 dBm

Intelligentne lennuaku

• Mahutavus

• 2453 mAh

• Kaal

• Umbes 80.5 g

• Pinge

• 7.38 V

• Laadimispinge piirang

• 8.5 V

• Aku tüüp

• Li-ion

• Jõud

• 18.1 Wh

• Maksimaalne laadimisvõimsus

• 37 W

• Charging Time

• 64 minutit (with DJI 30W USB-C Charger)

• Laadimise temperatuurivahemik

• 5° kuni 40° C (41° kuni 104° F)

• Soovituslik laadija

• DJI 30W USB-C Charger
  or other USB Power Delivery chargers

Intelligentne lennuaku Plus ^[7]

• Mahutavus

• 3850 mAh

• Kaal

• Approx. 121 g

• Voltage

• 7.38 V

• Laadimispinge piirang

• 8.5 V

• Aku tüüp

• Li-ion

• Jõud

• 28.4 Wh

• Max laadimisvõimsus

• 58 W

• Laadimise aeg

• 101 mins (with DJI 30W USB-C Charger)

• Laadimise temperatuuri vahemik

• 5° to 40° C (41° to 104° F)

• Soovituslik laadija

• DJI 30W USB-C Charger
  or other USB Power Delivery chargers

Mälukaardid

• Soovituslikud mälukaardid

• UHS-I Speed Class 3 or above is required.
  A list of recommended microSD cards can be found below.

• Soovituslikud microSD mälukaardid

• SanDisk Extreme 64GB V30 A1 microSDXC
  SanDisk Extreme 128GB V30 A2 microSDXC
  SanDisk Extreme 256GB V30 A2 microSDXC
  SanDisk Extreme 512GB V30 A2 microSDXC
  SanDisk Extreme Pro 64GB V30 A2 microSDXC
  SanDisk Extreme Pro 256GB V30 A2 microSDXC
  SanDisk Extreme Pro 400GB V30 A2 microSDXC
  SanDisk High Endurance 64GB V30 microSDXC
  SanDisk High Endurance 256GB V30 microSDXC
  SanDisk Max Endurance 32GB V30 microSDHC
  SanDisk Max Endurance 128GB V30 microSDXC
  SanDisk Max Endurance 256GB V30 microSDXC
  Kingston Canvas Go!Plus 64GB V30 A2 microSDXC
  Kingston Canvas Go!Plus 256GB V30 A2 microSDXC
  Lexar High Endurance 64GB V30 microSDXC
  Lexar High Endurance 128GB V30 microSDXC
  Lexar 667x 64GB V30 A1 microSDXC
  Lexar 633x 256GB V30 A1 microSDXC
  Lexar 1066x 64GB V30 A2 microSDXC
  Lexar 1066x 128GB V30 A2 microSDXC
  Lexar 1066x 256GB V30 A2 microSDXC
  Samsung Pro Plus 128GB V30 A2 microSDXC
  Samsung EVO Plus 512GB microSDXC

DJI RC-N1 Juhtpult

• Saatja võimsus (EIRP)

• 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

• Max toetatud mobiiliseadme suurus

• Length: 180 mm, Width: 86 mm, Height: 10 mm

• Toetatud pistikute tüübid

• Lightning, Micro-USB (Type-B), USB-C

• Videoedastus süsteem

• DJI O3

• Max aku tööaeg

• 6 hrs (without charging any mobile device)
  4 hrs (when charging a mobile device)

• Töötemperatuur

• -10° kuni 40° C (14° kuni 104° F)

DJI RC

• Mudel

• RM330

• Videoedastus süsteem

• DJI O3

• Saatja võimsus (EIRP)

• 2.400-2.4835 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
  5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

• Salvestusmaht

• DJI RC’s storage capacity can be increased by using a microSD card. Users can store images and videos on the card and export them to a computer or other devices.

• Video Output Port

• N/A

• Max aku eluiga

• Umbes 4 tundi

• Töötemperatuur

• -10° kuni 40° C (14° kuni 104° F)

• Toetatud SD kaardid

• UHS-I Speed Class 3 or above is required.
  A list of recommended microSD cards can be found below.

• Soovituslikud microSD kaardid

• SanDisk Extreme 64GB V30 A1 microSDXC
  SanDisk Extreme 128GB V30 A2 microSDXC
  SanDisk Extreme 256GB V30 A2 microSDXC
  SanDisk Extreme 512GB V30 A2 microSDXC
  SanDisk Extreme Pro 64GB V30 A2 microSDXC
  SanDisk Extreme Pro 256GB V30 A2 microSDXC
  SanDisk Extreme Pro 400GB V30 A2 microSDXC
  SanDisk High Endurance 64GB V30 microSDXC
  SanDisk High Endurance 256GB V30 microSDXC
  Kingston Canvas Go!Plus 64GB V30 A2 microSDXC
  Kingston Canvas Go!Plus 256GB V30 A2 microSDXC
  Lexar High Endurance 64GB V30 microSDXC
  Lexar High Endurance 128GB V30 microSDXC
  Lexar 633x 256GB V30 A1 microSDXC
  Lexar 1066x 64GB V30 A2 microSDXC
  Samsung EVO Plus 512GB microSDXC

• Wi-Fi Protokoll

• 802.11 a/b/g/n

• Wi-Fi Transmitter Power (EIRP)

• 2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC)
  5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)

• Bluetooth Protokoll

• Bluetooth 4.2

• Bluetooth Transmitter Power (EIRP)

• 2.400-2.4835 GHz: <10 dBm

Charging Hub

• Ühilduv DJI laadija

• DJI 30W USB-C Charger
  or other USB Power Delivery chargers

• Ühilduv DJI aku

• DJI Mini 3 Pro Intelligent Flight Battery, DJI Mini 3 Pro Intelligent Flight Battery Plus ^[7]

• Sisend

• 5 V, 3 A
  9 V, 3 A
  12 V, 3 A

• Väljund (USB)

• Max Voltage: 5 V, Max Current: 2 A

• Laadimistüüp

• Three batteries being charged in sequence

App

• Mobiine seadme rakendus (äpp)

• DJI Fly

• Nõutav operatsioonisüsteem

• iOS v11.0 või hilisem
  Android v6.0 või hilisem

Muu

• Footnotes

• 1. The standard weight of the aircraft (including the Intelligent Flight Battery, propellers, and a microSD card). Actual product weight may vary due to differences in batch materials and external factors. Registration is not required in some countries and regions. Check local rules and regulations before use. These specifications have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
  2. The max flight speed is subject to local restrictions that may change. Please abide by local laws and regulations when flying.
  3. Increase in aircraft weight can affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not mount additional payloads like a propeller guard or third-party accessories to avoid a lack of propulsion.
  4. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.
  5. Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the built-in SSD or the internal storage. Download speeds may vary depending on actual conditions.
  6. Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
  Max one-way communication distance of DJI Mini 3 Pro in countries/regions of different standards:
  FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions. Max transmission range: 12 km
  SRRC: Mainland China. Max transmission range: 8 km
  CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions. Max transmission range: 8 km
  MIC: Japan. Max transmission distance: 8 km
  7. Sold separately and only in selected countries.
